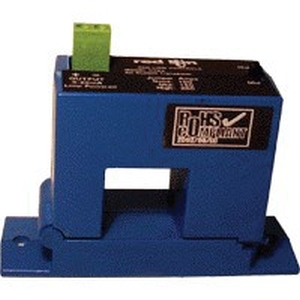

RED LION CONTROLS
#CTR20000
Current Transducer Chassis Mount 600 ms 10-400 Hz
SKU
#
78073687026
Manufacturer Series:
CTR Series
Specifications
Type:
Current Transducer
Sensed Current - Max.:
200A
Sensed Current - Min.:
100A
Sensed Current - Type:
AC
Output Type:
True RMS, Current
Output Current:
4-20 mA
Supply Voltage:
24V DC Nominal, 40 VDC max
Supply Current:
23 mA
Frequency:
10-400 Hz
Response Time:
600 ms
Mounting:
Chassis Mount
Terminals:
Screw
Housing Style:
Split Core
Temperature Rating:
-20 to 50 Degree C (-4 to 122 Degree F)
Description
CTR Series transducers combine a current transformer and a signal conditioner into a single package. This provides higher accuracy, lower wiring costs, easier installation and saves valuable panel space.
Additional Info: Polarization: Bidirectional, Number of Channels: 1, Accuracy: Plus/minus 0.8 Percent, Isolation Voltage: 3kV, Dimensions: 3.53 in. L x 1.18 in. W x 2.25 in. H
