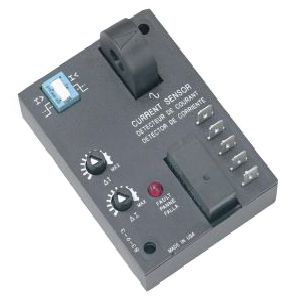

LITTELFUSE
#ECSH41AC
Current Sensor Surface Mount 75 ms 50-60 Hz
SKU
#
07945899260
Manufacturer Series:
ECS Series
Specifications
Country of Origin:
Mexico - Subject to change
Type:
Current Sensor
Sensed Current - Max.:
20A
Sensed Current - Min.:
2A
Sensed Current - Type:
AC
Output Type:
Electromechanical Relay
Output Voltage:
240V AC
Output Current:
10 A
Supply Voltage:
120V AC
Frequency:
50-60 Hz
Response Time:
75 ms
Current Setpoint:
Adjustable
Mounting:
Surface Mount
Terminals:
Screw
Housing Style:
Thru Hole
Temperature Rating:
-40 to 60 Degree C (-40 to 140 Degree F)
Description
Current Sensors: Type - Current Sensor; Sensed Current - Max. - 20A; Sensed Current - Min. - 2A; Sensed Current - Type - AC; Output Type - Electromechanical Relay; Output Voltage - 240V AC; Output Current - 10 A; Supply Voltage - 120V AC; Frequency - 50-60 Hz; Response Time - 75 ms; Current Setpoint - Adjustable; Mounting - Surface Mount; Terminals - Screw; Housing Style - Thru Hole; Temperature Rating - -40 to 60 Deg C (-40 to 140 Deg F); Manufacturer Series - ECS Series
