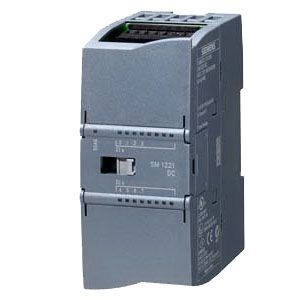

Digital Module, 24 Vdc, 20.4-28.8 Vdc, 8 Inputs, 4 mA at 24 Vdc Input, 8 Outputs

Description

PLC I-O Digital: Type - PLC Digital DC I/O Module; Voltage Category - 24 Vdc; Operating Voltage - 20.4-28.8 Vdc; Number of Inputs - 8 inputs; Input Current - 4 mA at 24 Vdc; Off-State Current - 1 mA (max); Number of Outputs - 8 outputs; Current Rating Per Output - 2A; I/O Application - Relay Outputs; Signal Delay - OFF to ON=10 ms, ON to OFF=10 ms; Backplane Current - 145 mA at 5V; Additional Information - Operating Temperature: -40 to 70 deg C (-40 to 158 deg F), Shielded Cable Length: 500m, Unshielded Cable Length: 300m; PLC System - Simatic S7-1200; Manufacturer Series - EM 223

Additional Info: Operating Temperature: -40 to 70 deg C (-40 to 158 deg F), Shielded Cable Length: 500m, Unshielded Cable Length: 300m
