PHOENIX CONTACT
#2700606

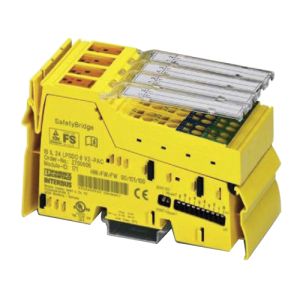

Digital Output Safety Module, 24 VDC, 8 Outputs
SKU
#
78037330361
Specifications
Type:
Digital Output Safety Module
Voltage Category:
24 VDC
Mounting:
DIN Rail
Voltage - Nominal:
24V DC
Number of Outputs:
8
Current Rating Per Output:
2 A
Operating Temperature:
-25° to +55°C
Voltage Range:
19.2 to 30 VDC
Connection:
Spring Cage
Dimensions:
HxWxD: 119.8 x 48.8 x 71.5mm
Description
The safety module is an output module from the inline product range designed for use in a SafetyBridge system. The safety module can be used as part of an inline station at any point within an Interbus, EtherCAT®, DeviceNet™, CANopen®, EtherNet/IP™, Sercos®, Modbus, PROFINET or Profibus system. The transmission speed of the safety module can be set to 500 kBaud or 2 Mbaud using a switch. One transmission speed must be used consistently within a station. The module has four safe digital outputs for two channel assignment or eight safe digital outputs for single channel assignment.
