SIEMENS
#6FX20015WD250AA1

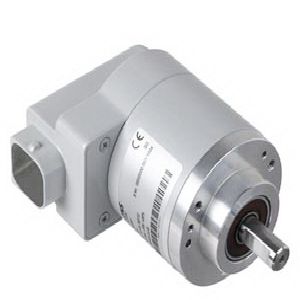

Absolute Encoder, 24V DC at 325mA, 2048 SPR/34 bit, 10000 RPM, IP64/67, Bracket Mount
SKU
#
04089257475
Specifications
Country of Origin:
Germany - Subject to change
Type:
Absolute Hollow Shaft
Enclosure:
IP67/IP64
Mounting:
Bracket
Shaft:
12mm Diameter
Power Supply:
24V DC at 325mA (max)
Slew Speed:
10000 RPM
Resolution:
2048 SPR, 34 bit
Connector:
Radial Connector
Operating Temperature:
-20-100 deg C
Description
PLC Encoders: Type - Absolute Hollow Shaft; Enclosure - IP67/IP64; Mounting - Bracket; Shaft - 12mm Diameter; Power Supply - 24V DC at 325mA (max); Slew Speed - 10000 RPM; Resolution - 2048 SPR, 34 bit; Connector - Radial Connector; Operating Temperature - -20-100 deg C; Additional Information - Multi Turn Encoder
Additional Info: Multi Turn Encoder
