OMRON
#E6F-AG5C-C2562M

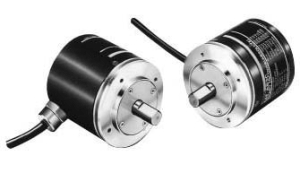

Absolute Rotary Encoder, 8 bit, Gray Code, 12-24V DC, IP52, Chassis, 5000 RPM
SKU
#
40312362821
Specifications
Type:
Absolute
Enclosure:
IP52
Mounting:
Chassis
Shaft:
10mm Diameter
Power Supply:
12-24V DC
Output:
Gray Code
Slew Speed:
5000 RPM
Resolution:
8 bit
Connector:
6.5 ft. (2m) Cable
Operating Temperature:
-10 to 70 deg C
Description
PLC Encoders: Type - Absolute; Enclosure - IP52; Mounting - Chassis; Shaft - 10mm Diameter; Power Supply - 12-24V DC; Output - Gray Code; Slew Speed - 5000 RPM; Resolution - 8 bit; Connector - 6.5 ft. (2m) Cable; Operating Temperature - -10-70 deg C
