SIEMENS
#A6X30014288

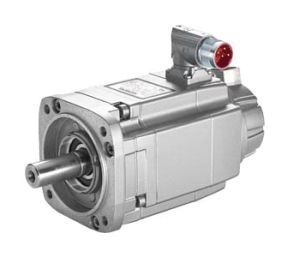

SIMOTICS® Motor, Servo; Synchronous AC; 4500 RPM; 12 NM Static; 5 NM Rated
SKU
#
04089254534
Manufacturer Series:
S-1FK7
Specifications
Type:
Synchronous AC Servomotor
Use w/Drive Series:
SINAMICS S110/S120
Voltage Rating:
380-480V AC
Torque Rating:
12.00 NM Static, 5.00 NM Rated
Speed Rating:
4500 rpm
Enclosure:
IP64
Description
SIMOTICS S-1FK7 High Dynamic motors are distinguished by a high overload capability as well as low inertia. Thereby, they reach an extremely high acceleration capacity. The SIMOTICS S-1FK7 High Dynamic motors are especially suitable for applications with very short cycle times, e.g. in packaging machines. 14 types are available with a torque range from 1.3 to 28 Nm and rated speeds up to 6000 rpm.
