SIEMENS
#6SL32110AB211UA1

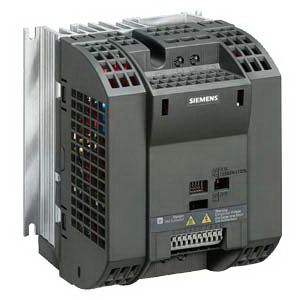

Sinamics AC Drive; Fixed Frequency; 200-240VAC; 1.5 hp and 1.1 kW at 1 Phase
SKU
#
66264343393
Manufacturer Series:
G110
Specifications
Type:
AC Drive
Control Type:
Fixed Frequency - Programmable (V/Hz)
Input Voltage Rating:
200-240V AC
1 Phase Drive Horsepower Rating:
1.5
1 Phase Drive kW Rating:
1.1
1 Phase Output Current Rating:
6A
Enclosure:
IP20
Dimensions:
HxWxD: 6.30 x 5.51 x 5.59 in. (160x140x142mm)
Description
Additional Info: Frame Size: FSB, Operating Temperature: -10-40 deg C (14-104 deg F), Without Filter
