SIEMENS
#FD63B150L

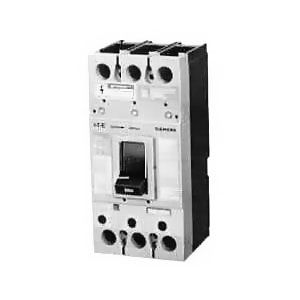

Sentron Circuit Breaker, Thermal Magnetic; 600V AC/500V DC; 3P; 150A
SKU
#
78364300531
Specifications
Amps:
150A
Country of Origin:
Mexico - Subject to change
Type:
Thermal Magnetic Interchangeable Trip Breaker
Voltage Maximum:
600V AC/500V DC
Number of Poles:
3P
kA IR 240V AC:
65
kA IR 480V AC:
35
kA IR 600V AC:
22
KA IR VDC:
18
Terminals:
Line and Load Lugs
Dimensions WxHxD:
4.50x9.50x4.00 in. (114x241x102 mm)
Frame Type:
FD 250A
Description
Additional Info: Trip Unit: Adjustable Magnetic Trip. Magnetic Range: 800-1500A
