PHOENIX CONTACT
#1605556

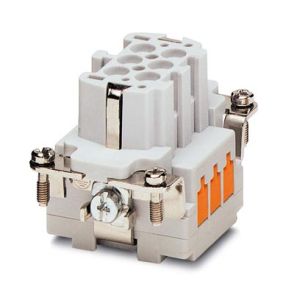

Heavycon Quick Connect Female Insert 6P 16A 400V - HC-B6-EBUQ-25
SKU
#
78037375718
Manufacturer Series:
B Series
Specifications
Type:
Female Insert
Contact Connection Type:
Quick Connect
Positions:
6P
Rating - Current:
16A
Rating - Voltage:
400V
Mounting Code-Series Size:
B6
Wire Range:
22-14 AWG
Number of Contacts:
6 + Ground
Termination Method:
Quick Connect Terminal
Temperature Rating:
-40 to 125 Degree C (-40 to 257 Degree F)
Material Rating:
UL 94 V-0
Description
Modular System - Inserts: Type - Female Insert; Contact Connection Type - Quick Connect; Positions - 6P; Rating - Current - 16A; Rating - Voltage - 400V; Mounting Code-Series Size - B6; Wire Range - 22-14 AWG; Number of Contacts - 6 + Ground; Termination Method - Quick Connect Terminal; Temperature Rating - -40 to 125 deg C (-40 to 257 deg F); Material Rating - UL 94 V-0; Additional Information - Contact Material: Copper alloy; Manufacturer Model - B Series; Manufacturer Series - Heavycon
Additional Info: Contact Material: Copper alloy
