EATON
#AGSHWCH120N03XS

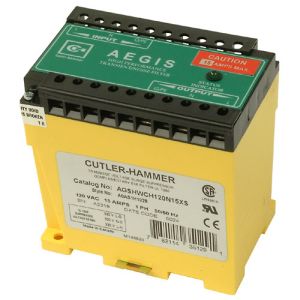

AEGIS Transient, Surge, Noise Protection Filter 10 kHz - 50 MHz 3
SKU
#
78211435126
Manufacturer Series:
Hybrid
Specifications
Filter Type:
Transient, Surge, Noise Protection
Volts/Wires:
120V 1Ø 2W+G
Amps:
3A
Protection Modes:
L-N, L-G, N-G
Peak Surge Current:
39kA per Ø
Filter Bandwidth:
10 kHz - 50 MHz
Noise Attenuation:
85 dB at 100 kHz
Mount:
DIN Rail/Flange
Connection:
Hardwire
Enclosure Size:
X-Series, 110x71x109mm 4.38x2.87x4.30 in
