PHOENIX CONTACT
#1414418

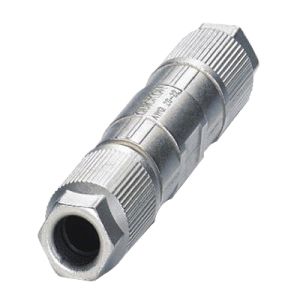

Quick Connect Cable Connector, Straight, 4 P, 250 VAC
SKU
#
78037342279
Specifications
Connector Type:
Quick Connect Cable Connector
Angle:
Straight
Poles:
4
Terminals:
IDC
Voltage:
250V AC
Amps:
4 A at 40°C
Material:
CuZn Contact, Nickel Plated Die Cast Zinc Knurls and Grip, NBR Sealing
Cable Range:
26 to 18 AWG (Flexible), 26 to 20 AWG (Solid)
Application/Rating - IEC:
IEC-IP65, IP67
